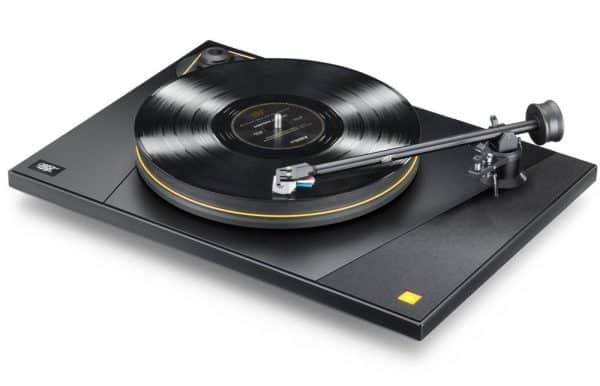

Mobile Fidelity UltraDeck Turntable inc MasterTracker MM Cartridge

The Mobile Fidelity UltraDeck Turntable inc MasterTracker MM Cartridge which is the ideal music player for music lovers. It comes with the MasterTracker MM Cartridge, which extracts the details from your records’ grooves.

Mobile Fidelity UltraDeck Turntable inc MasterTracker MM Cartridge

The Mobile Fidelity UltraDeck Turntable is a high-quality turntable made in the USA. “Ultra” is synonymous with Mobile Fidelity Sound Lab’s philosophy. It represents our extreme pursuit of the highest level of reproduction of recorded sound—beyond the status quo—to provide music lovers with the experience of hearing the Original Master Recording in their home.

Meticulous Design and Evaluation

Advanced technology, user-friendly features, and solid design elements ensure phenomenal playback on the UltraDeck inc MasterTracker—ultimately bringing the sound of Mobile Fidelity’s famous studio into your home.

Ultra Tonearm

Custom-developed and manufactured in the USA, the 10-inch Ultra tonearm uses smooth, high-quality ball bearings for low friction in the vertical and horizontal plane, so all you hear is what is in the grooves. Cardas Audio wiring maintains signal purity from the headshell, which leads to the high-quality, gold-plated RCA plugs.

Isolated AC Synchronous Motor

Our stepped-pulley AC motor provides excellent speed stability for pitch accuracy and rhythmic drive. The Delrin pulley has two positions for 33 1/3 and 45 RPM speed selection. Motor vibrations are kept from the platter and stylus using advanced dampening materials that decouple the motor from the rest of the UltraDeck Turntable.

Constrained Layer Damping

The Mobile Fidelity UltraDeck features three aluminium plates carefully bonded to an MDF body to add mass and eliminate tonal colouration, maintaining the authentic sound found on the record.

Anti-Vibration Feet

Any stylus vibration not created by the grooves in the record is a distortion that will mask musical detail. Developed with the engineering team at Harmonic Resolution Systems, the world leader in audio equipment vibration isolation. The Mobile Fidelity anti-vibration feet isolate your UltraDeck Turntable from bad vibrations.

1.3-inch Delrin Platter

UltraDeck Turntable inc MasterTracker features a massive 1.3-inch Delrin platter. The increased mass creates blacker sonic backgrounds and a lower noise floor. Delrin is a next-generation polymer developed by Dupont. In the world of audio, Delrin’s highly crystalline structure presents an excellent impedance match to vinyl records, effectively grounding unwanted noise and keeping it away from the stylus.

Features and Advantages

• Precision Engineering: This turntable’s technology ensures the user will get the most detailed yet realistic sound.
• Heavy-Duty Construction: Its increased weight is evidence that this turntable has better braking capabilities and that the player is more stable.
• MasterTracker MM Cartridge: It can scan deeper into the grooves to find music that the lesser cartridge was unable to.
• Anti-Vibration Feet: A clean power supply is achieved when the equipment is placed on isolation pads that prevent resonance from penetrating it. The sound produced is better and undistorted.
• Easy Setup: Its simple operation requires no fussy calibration. The turntable integrates easily with other devices.

Technical Specifications

• Motor: 300 RPM AC Synchronous
• Speeds: 33 1/3 RPM, 45.0 RPM
• Platter: 6.8 lb Delrin
• Wow & Flutter: 0.017% – 0.025%
• Signal-To-Noise Ratio: 74dB
• Tonearm: 10″ straight aluminium, gimbaled bearing
• Overhang: 0.71″ (18mm)
• Offset Angle: 22.8˚ (+/- 2˚ adjustable)
• Cartridge Weight Range: 5g – 10g
• Dimensions: 19.69″ x 5.375″ x 14.25″
• Weight: 23.1 lb

Summary of the Mobile Fidelity UltraDeck Turntable

The Mobile Fidelity UltraDeck truly reflects the best features of modern sound technology and the old-school atmosphere of vinyl records. It is the result of intensive studies in different areas of sound reproduction and recording that provided more than mere musical notes and became a memory experience through the ears as well.

A Firm Musical Foundation

From a sturdy construction to a specifically designed MasterTracker Cartridge, the UltraDeck is an uncomplicated device capable of making solid and constant play. The latter being a reference to the product’s quietness. Its style and execution continually run through the music and the listener without any intervention.

Simplicity Meets Excellence

Just pass it on to a regular person, and the installation will be a piece of cake. It is music playback equipment with easy-to-use and best-sounding characteristics. The UltraDeck Turntable can be the central part of the music system for those inclined towards phonograph records or for those who are just learning about that noble musical art.
